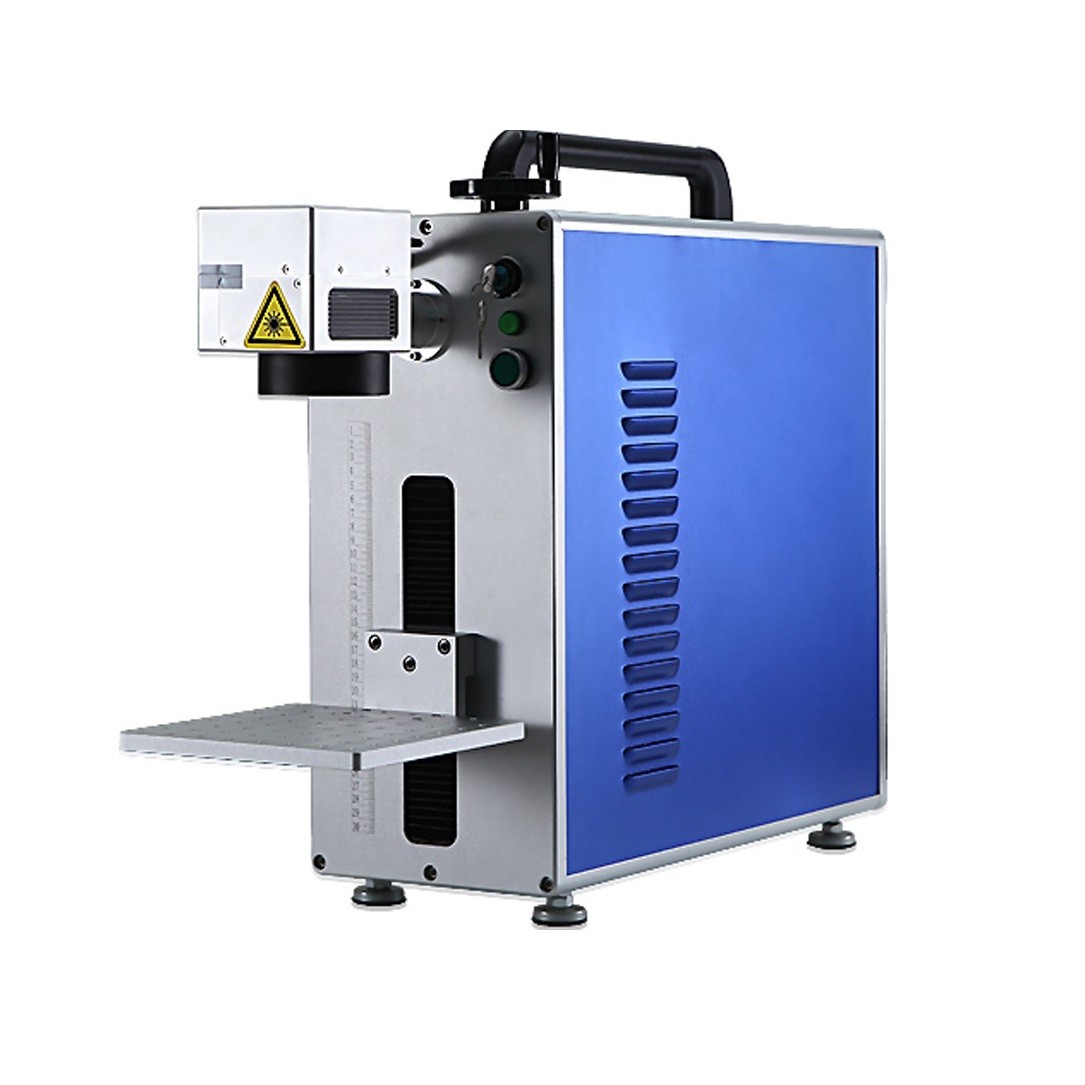

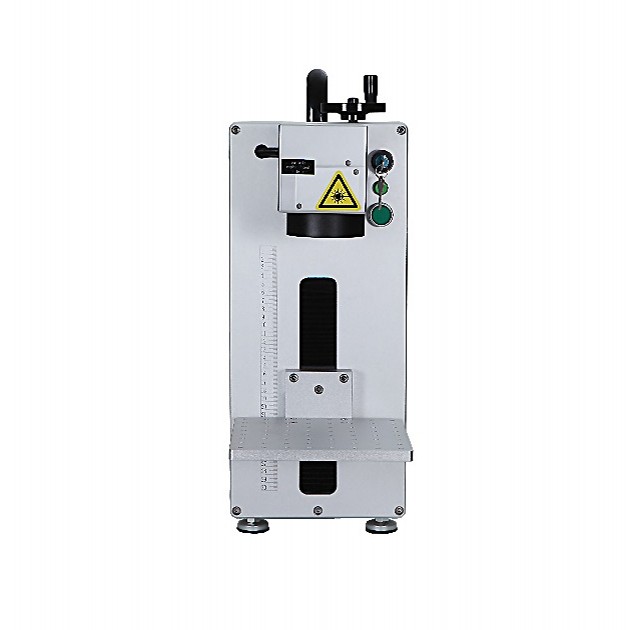

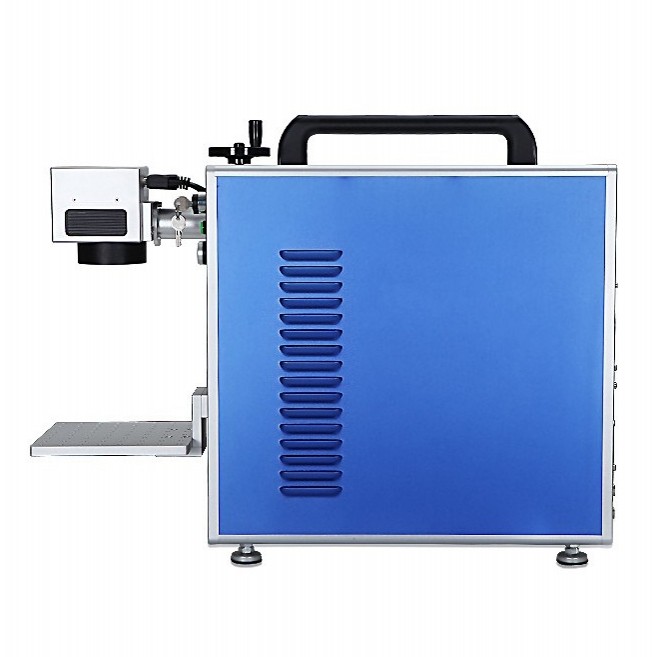

20W 30W 50W Portable Fiber Laser Marking Machine
  • 20W 30W 50W Portable Fiber Laser Marking Machine
  • 20W 30W 50W Portable Fiber Laser Marking Machine
  • 20W 30W 50W Portable Fiber Laser Marking Machine
20W 30W 50W Portable Fiber Laser Marking Machine 20W 30W 50W Portable Fiber Laser Marking Machine 20W 30W 50W Portable Fiber Laser Marking Machine

20W 30W 50W Portable Fiber Laser Marking Machine

Download Brochure

1,Optical Fiber Laser, environment friendly, easy maintenance,

2,Life of the laser can be up to 100000 hours,

3.Small volume and weight, less than 35KGS,

4,Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD


    Fiber laser marking machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.


    Name

    Origin(brand)

    Remarks

    Optical laser

    Raycus (Maxphotonics, IPG,SPI fiber laser for optional)

    Long service life, high reliability, fine beam quality

    Galvo mirror

    Galvo-tech(digital)

    Fine marking, more quick and high reliability

    F-θ lens

    Wavelength

    High quality optical device

    Marking software

    Special marking Software (EzCad2.5.3 software)

    Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible form

    Control computer

    China

    Lenovo

    Control cabinet

    China

    Optical fiber special cabinet, all the mold production,high seal


    Application Industry:


    Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware,Sanitary equipments, Hardware tools, Knife,Glasses, Clock, Cooker, Stainless steel products etc.


    Application Materials:


    Engraving bar codes, decorative map, LOGO,factory number, production date, dial on all Metals(Gold, silver, copper, alloy, aluminum, steel, stainless steel,name card), Non-metal(Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments,glasses watches and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc)

    Model

    ES-F20W

    Fiber laser source

    RAYCUS(Maxphotonics/IPG/SPI optional)

    Laser power

    20W/30W/50W/70W/100W

    Laser wavelength

    1060nm

    Laser repeat frequency

    20-100kHz

    Speed

    10000mm/s

    Precision

    0.001mm

    Marking depth0.05-1.5mm(different according material)

    Minimum line width

    0.01mm

    Minimum height of characters

    0.05mm

    Cooling way

    Air cooling

    Marking range

    70x70mm/110x110mm/150x150mm/200x200mm optional

    Laser power supply

    0.8KW,220V/50Hz,110V/60HZ

    Software compatible

    Auto-cad, Coreldraw, Photoshop software

    Machine weight

    45KGS

    Optional deviceOnline flying marking, rotary device


    Parts with the fiber machine:


    No.

    Name

    Unit

    Quantity

    1

    Computer

    pc

    1

    2

    Remote control switch

    pc

    1

    3

    Dimmer piece

    pc

    1

    4

    Randonm tools

    set

    1


    Package and shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.



    Guarantee and after sale service:


    2 year guarantee for whole machine

    24 hours technical calling or e-mail service for any technical questions of our machine

    We offer detailed User Manual and videos for machine installation, operation, and also for Software
