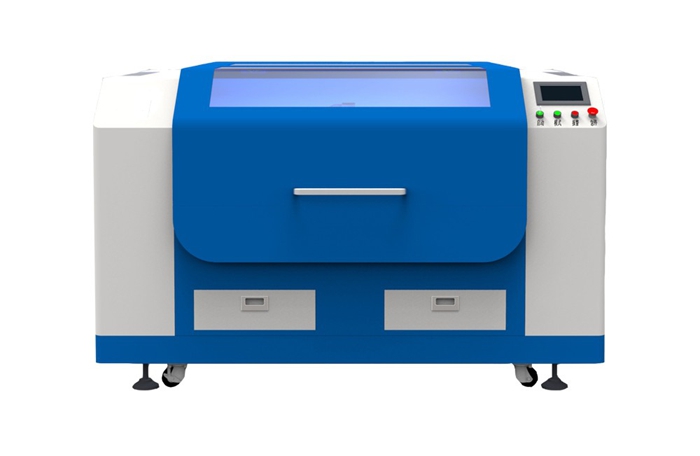

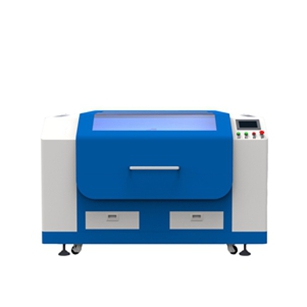

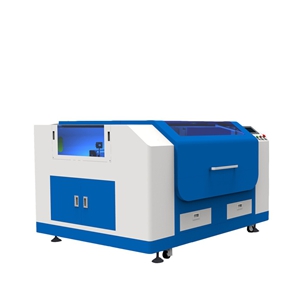

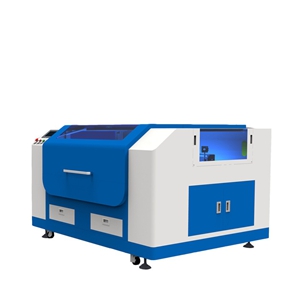

1390 Metal and Non-metal CO2 Laser Cutting Machine
  • 1390 Metal and Non-metal CO2 Laser Cutting Machine
  • 1390 Metal and Non-metal CO2 Laser Cutting Machine
  • 1390 Metal and Non-metal CO2 Laser Cutting Machine
1390 Metal and Non-metal CO2 Laser Cutting Machine 1390 Metal and Non-metal CO2 Laser Cutting Machine 1390 Metal and Non-metal CO2 Laser Cutting Machine

1390 Metal and Non-metal CO2 Laser Cutting Machine

Download Brochure

1)Working size:1300mmx900mm
2)Power:CO2 150W/180W laser tube
3)Used for cutting metal and nonmetal

    1390M Laser Cutter for Metal and Non-metal is equiped with co2 laser tube,can be used for cutting metal sheet such as carbon steel,stainless steel and nonmetal materials such as acrylic,die board,MDF,plywood,etc.


    Applicable materials:


    acrylic, stainless steel, carbon steel, MDF,die board.


    Applicable industry:


    metal spectacle frame, furniture plate cutting, MDF photo frame cutting, building model cutting.

    Name

    ES-1390M

    Processing area

    1300mmx900mm

    Laser power

    130W/150W/180W RECI

    Laser type

    Sealed Co2 glass laser tube

    Working life of laser tube

    8000-10000 hours

    Cooling mode

    Water cooling and protection system

    Model of water chiller machine

    CW5200

    Operation system

    Windows98/ME/2000/XP/VISTA/Windows7/8/10

    Type of worktable

    Blades

    Resetting positioning accuracy

    ±0.01mm

    Compatible Software

    CorelDraw  AutoCAD  Photoshop

    Cutting speed

    1-400mm/s

    Controlling software
    Ruida

    Interface:

    USB

    Control system

    DSP

    Smoke Exhausting

    By Funnel

    Support graphic format

    DST, PLT, BMP, DXF

    Cooling mode

    Circulation water cooling

    Air blowing system

    Air compressor

    Working voltage

    AC 110 - 220V±10%, 50 - 60Hz, 30A max

    Operating temperature

    0-45C

    Operating humidity

    5-95%

    Driving system

    stepper or servo

    Machine dimension

    1.9x1.4x1.13m

    Package dimension

    2.01x1.9x1.39m

    Auxiliary cutting gas

    Nitrogen,oxygen or air

    Net weight

    420KGS


    Package and Shipping:

    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.

    Guarantee and after sale service:

    2 year guarantee for whole machine
    24 hours technical calling or e-mail service for any technical questions of our machine
    We offer detailed User Manual and videos for machine installation, operation, and also for Software
