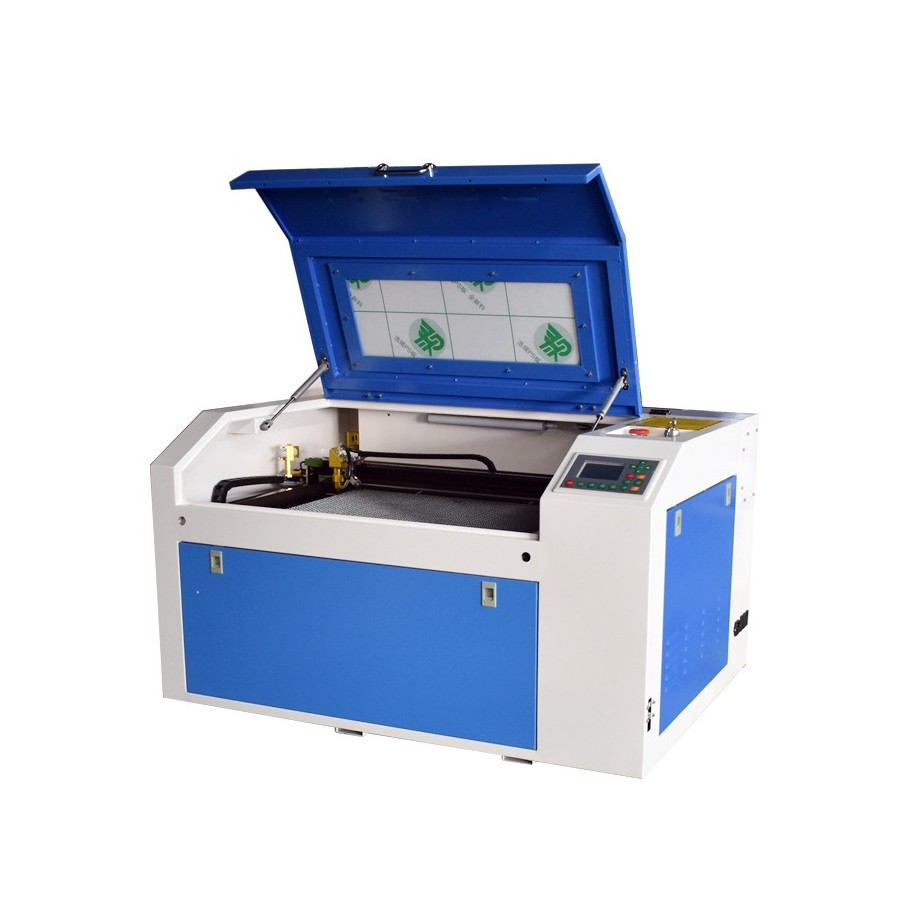

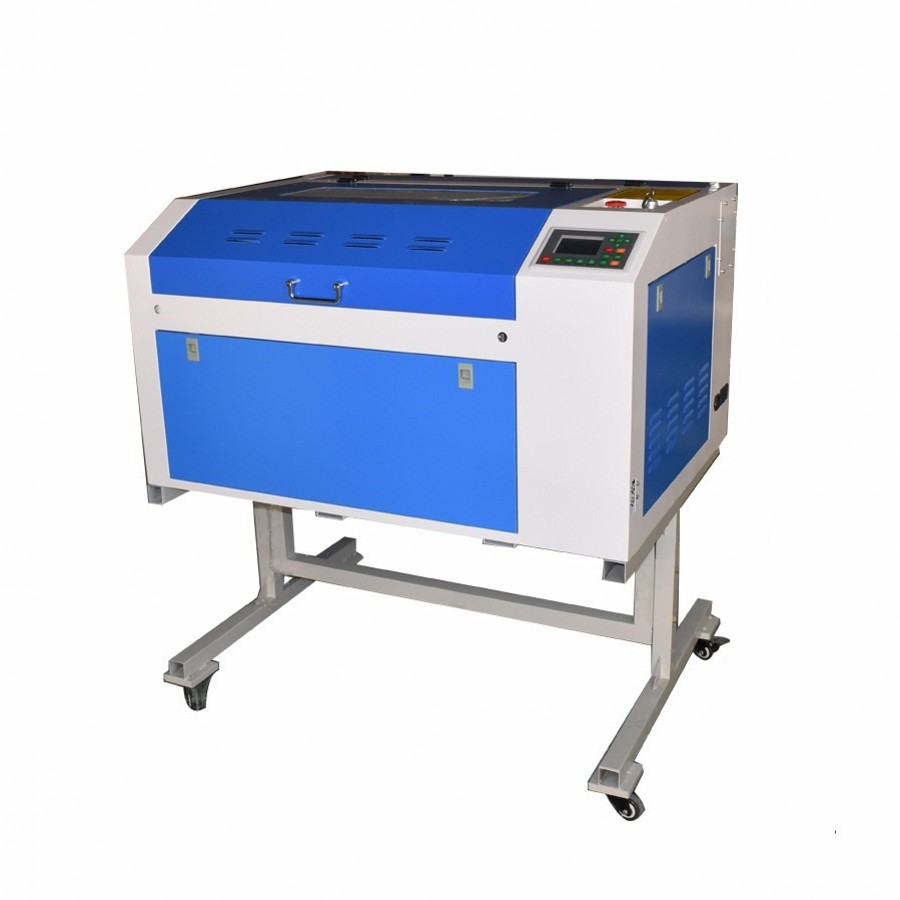

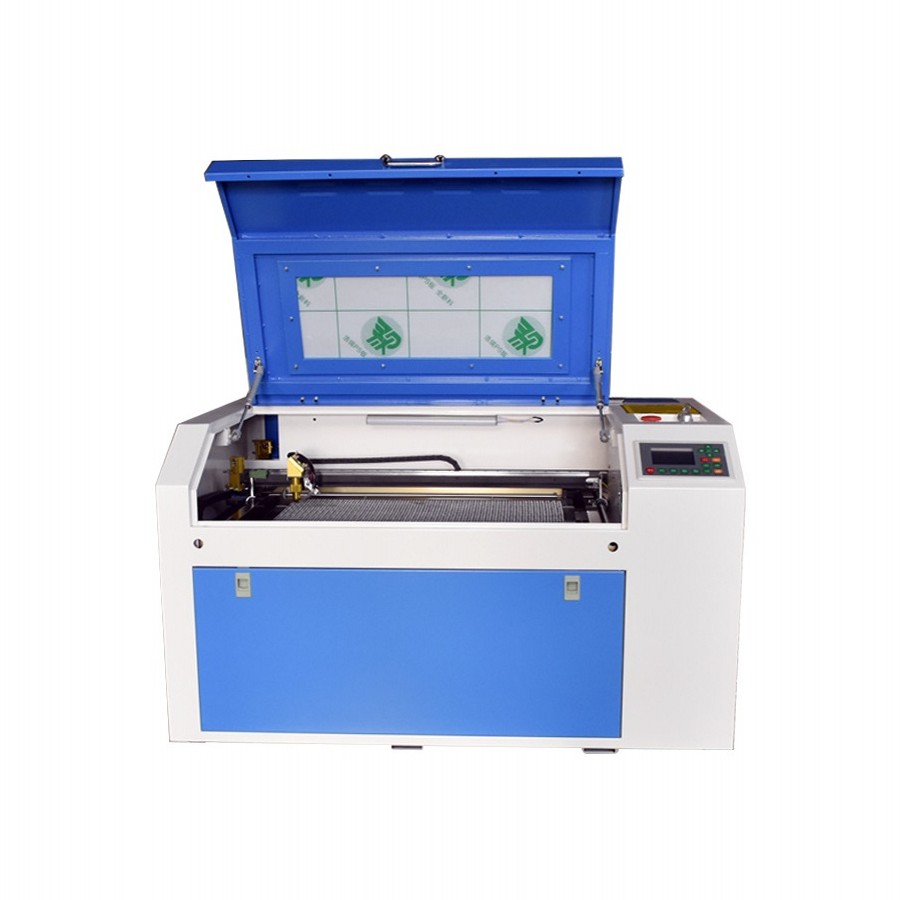

ES6040 Economic Desktop Laser Engraving and Cutting Machine
  • ES6040 Economic Desktop Laser Engraving and Cutting Machine
  • ES6040 Economic Desktop Laser Engraving and Cutting Machine
  • ES6040 Economic Desktop Laser Engraving and Cutting Machine
ES6040 Economic Desktop Laser Engraving and Cutting Machine ES6040 Economic Desktop Laser Engraving and Cutting Machine ES6040 Economic Desktop Laser Engraving and Cutting Machine

ES6040 Economic Desktop Laser Engraving and Cutting Machine

Download Brochure

1, 400x300mm, 500x300mm working size optional.

2. Laserdrw,WinsealXP,Corellaser software supported.

3. Up and down motorized table, can engrave and cut different thickness material,


    1.High speed.The maximum speed can be 1000mm/s which greatly improves working efficiency.

    2.Precise engraving.Professional engraving optical lens with more stable light beam and accurate red light position are adopted.

    3.Convenient putting in and putting away of materials.Working space can be opened totally and platform can be adjusted by up-and-down device.

    4.Engraving speed and precision can be up to leading level in China.

    5. It is mainly used for processing crafts and gifts such as engraving on wooden boards, acylic and double -color boards.


    Applicable materials:


    Non-metal materials such as acrylic, double color board, Plexiglass, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.


    Applicable industries:


    Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.

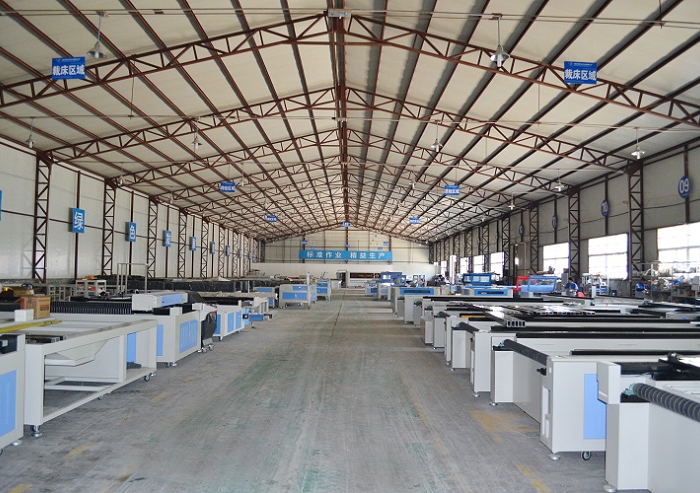

    Factory workshop:


    Name

    ES-6040E laser engraving machine

    Processing area

    600mmx400mm

    Laser power

    40W,50W,60W,80W

    Laser type

    Sealed Co2 glass laser tube

    Cooling mode

    Water cooling and protection system

    Resetting positioning accuracy

    ±0.01mm

    Compatible Software

    CorelDRAW,photoshop,AutoCAD

    Operation System

    Windows 98/ME/2000/XP/VISTA/Windows7

    Engraving speed

    1-800mm/s

    Cutting speed

    1-600mm/s

    Cutting thickness

    0-15mm acrylic (others determined by materials)

    Resolution ratio

    ≤0.02mm

    Position system

    Red dot

    Interface

    USB

    Minimum shaping character

    letter 0.5mm, Chinese 0.5mm

    Support graphic format

    DST, PLT, BMP, DXF

    Driving mode

    DC0.8A 24V stepper motor

    Worng voltage

    AC 110 - 220V±10%, 50 - 60Hz or depend on customer

    Operating temperature

    0-45°C

    Operating humidity

    5-95%

    Machine size

    1020x750x580 mm

    Machine weight

    80KGS

    Package size

    1500x870x770 mm

    Package  weight

    100KGS

    Optional deviceRotary device, honeycomb table


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea, train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors.

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.



    Applicable materials:


    Material

    Engraving

    Cutting

    Wood

    Acrylic

    Cloth

    Leather

    Rubber

    MDF

    PVC

    Paper

    Double color

    Plywood

    Balsa

    Cork

    Twill

    Plastic

    Wood veneer

    Delrin

    Die board

    Mat board

    Mylar

    Glass


    Tile


    Jade


    Stone


    Coated metal


    Stainless steel



    Carbon steel



    Copper



    Gold



    Silver
