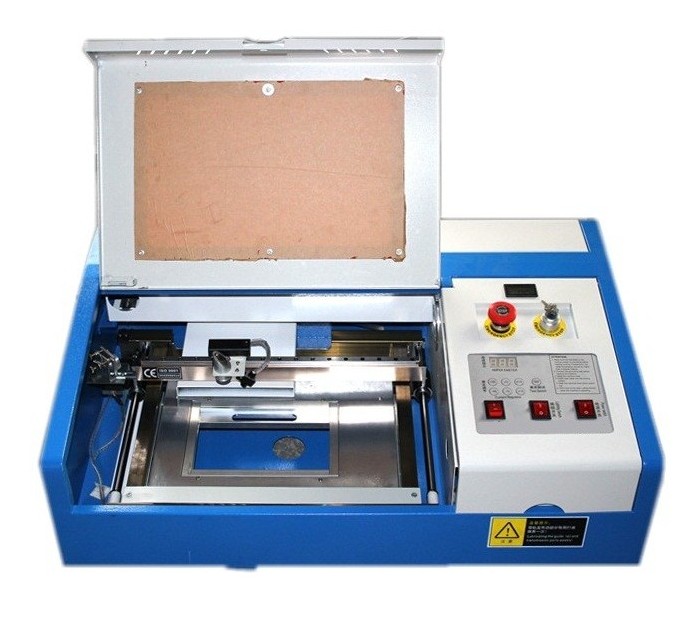

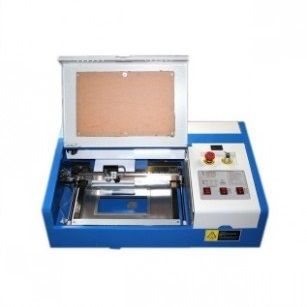

ES40B Mini Desktop Laser Engraving Cutting Machine
  • ES40B Mini Desktop Laser Engraving Cutting Machine
  • ES40B Mini Desktop Laser Engraving Cutting Machine
  • ES40B Mini Desktop Laser Engraving Cutting Machine
ES40B Mini Desktop Laser Engraving Cutting Machine ES40B Mini Desktop Laser Engraving Cutting Machine ES40B Mini Desktop Laser Engraving Cutting Machine

ES40B Mini Desktop Laser Engraving Cutting Machine

Download Brochure

1,LaserDRW,WinsealXP or CorelLASER software, CorelDRAW supported.

2,Engraving and Cutting non metal material.

3,Brand new, factory direct, 2 years free warranty and life time free maintenance service.

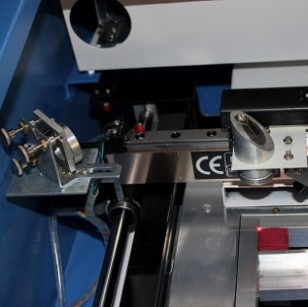

    1, High quality running guide rail, ensure the laser head running smoothly.

    2. Reasonable mechanical design which is faster and durable.

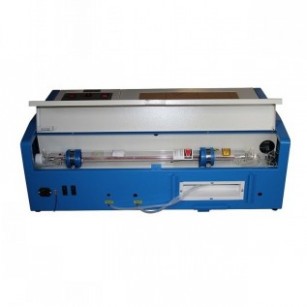

    3. High-quality,the service life of the laser tube will last much longer

    4. M2 Nano mainboard mainboard, ensure the system stable,

    5. Fixture table, can fix the stamp and can also put other big size, can also be equiped with up and down table by hand( optional), it can suit for different material thickness processing.


    Application:


    Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.


    Factory workshop:


    Model

    ES-40B

    Working Area

    400x300/300x200/200x100mm optional

    Laser Power

    40W/50W

    Laser Type

    Sealed CO2 laser tube

    Working Platform

    Fixture,Honeycomb

    Working Speed

    0-1000mm/min

    Resolution Accuracy

    0.0125mm

    Graphic Format Support

    BMP/PLT/DST/AI/DXF

    Operation System

    Windows 98/ME/2000/XP/VISTA/Windows 7

    Operating Temperature

    0-45°C

    SoftWare Compatible

    LaserDRW,CorelLASER, WinsealXP

    Working Voltage

    110V/AC-220V/AC,50~60Hz

    Cooling

    Water cooling

    Whole Machine Size

    80x50x25cm

    Machine Weight

    35KG

    Package Size

    95 x 65 x 40cm

    Package Weight

    45KGS

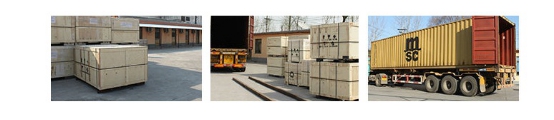

    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors.

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.






    Applicable material:


    Material

    Engraving

    Cutting

    Wood

    Acrylic

    Cloth

    Leather

    Rubber

    MDF

    PVC

    Paper

    Double color

    Plywood

    Balsa

    Cork

    Twill

    Plastic

    Wood veneer

    Delrin

    Die board

    Mat board

    Mylar

    Glass


    Tile


    Jade


    Stone


    Coated metal


    Stainless steel



    Carbon steel



    Copper



    Gold



    Silver
