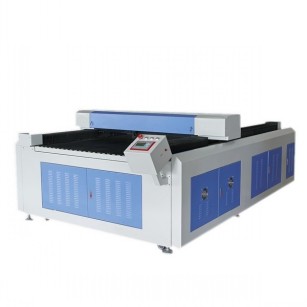

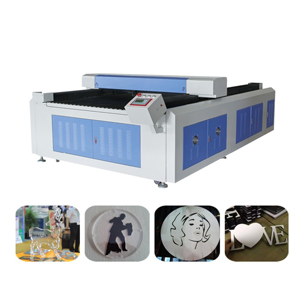

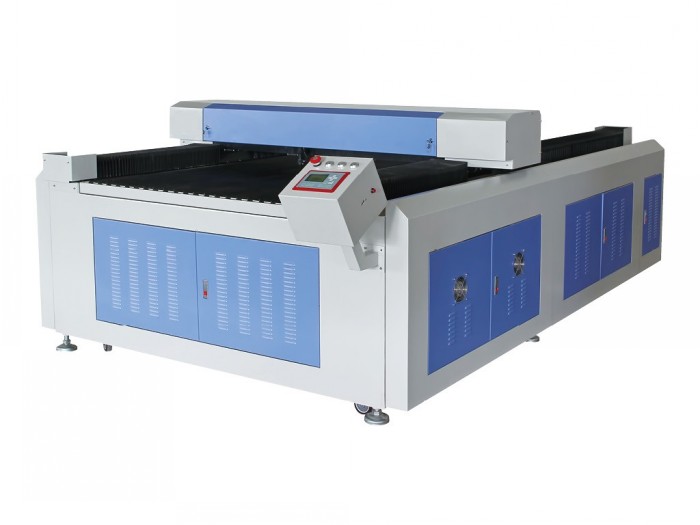

ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine
  • ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine
  • ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine
  • ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine
ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine

ES1530 1500x3000mm Wood MDF Plywood Furniture Laser Cutting Machine

Download Brochure

1. 1300x2500mm, 1500x3000mm size option, other size can be on need.

2. ball screw and belt moving system can be available.ensure moving smoothly, fast and stable.

3. Easy control system. it could change speed instantly during the cutting according to the different requirements of curve and straight line.

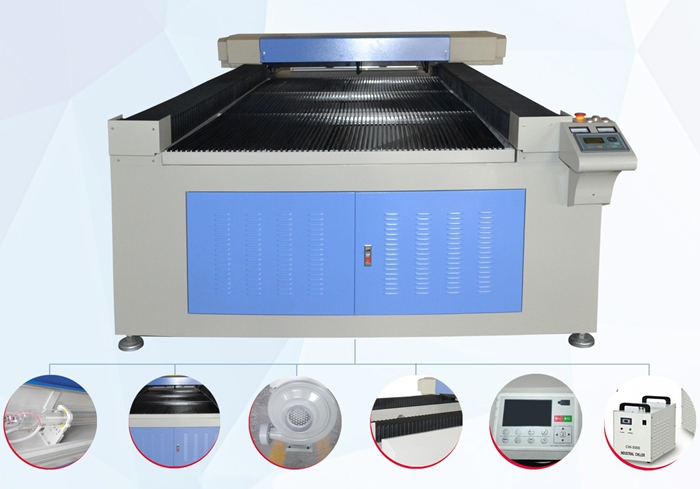

    1. The laser cutting machine adopt advanced DSP control system which continue and optimize the cutting speed, processing path, improve the working efficiency. The clearance compensation ensure the processing quality.

    2. Fully supported AutoCAD, CORELDRAW, PHOTOSHOP software, friendly human-computer interface.

    3. In the process of designing and producing--stable mechanical design imported linear guide rail and precision gear, make sure the high speed and high precision.

    4. Special treatment easily changeable blade or honeycomb worktable, easy maintance.

    5. Widely used,make the large size and kinds of common board processing by laser machine possible.

    6. Reasonable design of laser line with the industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.

    7. Multi-document function:the machine can store 256 files.the machine can still work out of computer.



    Application Industry:


    kitchen, furniture, electronic components, cooling ventilation pipe, wood, cold-rolled signs, glass, plexglass, MDF, hardware, acrylic, compound materials, metal parts and nonmetal materials industry.


    Application Material:


    acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, oxe horns, resin animal grease,ABS boards, etc.


    Factory Workshop:


    Type

    ES-1530

    Laser power

    80w/100W/130W/150W

    Working size

    1500x3000mm

    Laser type

    Sealed CO2 laser tube,water-cooling

    Working table

    Blade or honeycomb worktable

    Cooling type

    Water cooling

    Engraving speed

    0-800mm/s

    Cutting speed

    0-600mm/s

    Cutting thickness

    0-30mm acrylic (others determined by materials)

    Smallest character

    Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm

    Locating precision

    ≤±0.01mm

    Supported graphic format

    PLT,AI,BMP.DST,DXF etc.

    Power supply

    AC 110 - 220V±10%, 50 - 60Hz

    Operating temperature

    0-45°C

    Compatible software

    CorelDRAW,Photoshop,AutoCAD,

    Color separation

    yes

    Operation system

    Windows98/ME/2000/XP/VISTA/Windows7/8/10

    Machine weight

    1250KGS

    Machine size

    3.46x2.61x1.2m

    Package weight

    1450KGS

    Package size

    4.5x2.3x1.5m

    Optional deviceHoneycomb table, up and down table


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors.

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.


    Application Material:


    Material

    Engraving

    Cutting

    Wood

    Acrylic

    Cloth

    Leather

    Rubber

    MDF

    PVC

    Paper

    Double color

    Plywood

    Balsa

    Cork

    Twill

    Plastic

    Wood veneer

    Delrin

    Die board

    Mat board

    Mylar

    Glass


    Tile


    Jade


    Stone


    Coated metal


    Stainless steel



    Carbon steel



    Copper



    Gold



    Silver
