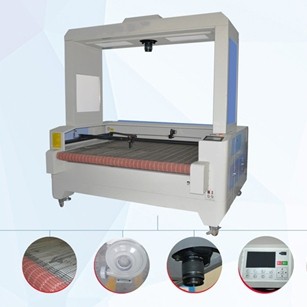

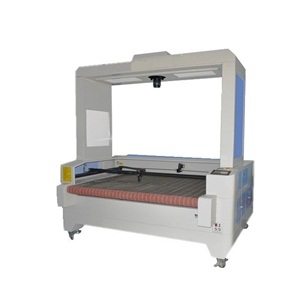

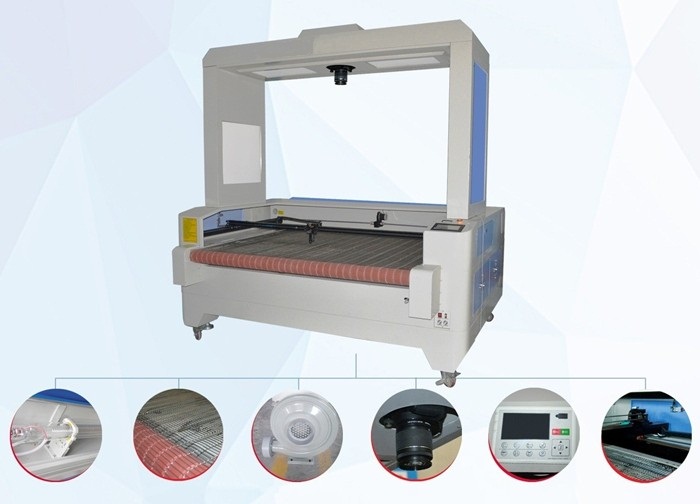

1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera
  • 1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera
  • 1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera
  • 1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera
1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera 1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera 1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera

1600X1000mm Auto Feeding Fabric Laser Cutting Machine with Camera

Download Brochure

1) Working area: 1600mm*1000mm

2) Laser type: sealed co2 laser tube 80W/100W


    Vision laser cutting machine is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes. Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy. A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed. Applied for all sports clothing, bathing suits, dresses, craft jewelry and other industrial product.


    Features:

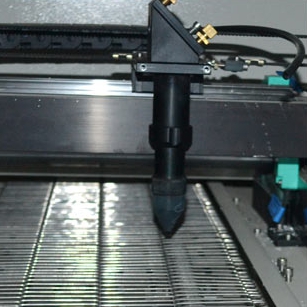

    1,Auto-feeding system adopts crawler-type worktable, dual laser head mutual move processing and auto- feeding system, improving cutting efficiency. The rolls of the machine are able to roll up the large material automatically.

    2,Adopting Singapore Silicon reflect mirroe and lens,  taiwan Hiwin Linear motion guide, ensuring the laser head is moving smoothly, fast and stable. Small cutting kerf, high cutting speed and accuracy guarantee the equipment’s precision and lifetime.

    3,Advanced spped control system can change speed instantly during the cutting according to the different requirement of curve and stright line.

    4,Easy to operate. USB offline control system : design on coomputer  and use on many machines, saving the PC memory source.

    5,Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.


    Applicable materials:


    genuine leather,artificial leather ,soft leather,decorative leather,packaging leather,etc,all kinds of leather materials,pure cotton,real silk,chemical fiber,denim,non-woven materials.



    Applicable industries:


    clothing,footwear,home textiles,embroidery,toy,leather,luggage,outdoors,sports,car seat.


    Factory Workshop:


    Type

    ES-A1610C

    Laser power

    80w/100W

    Working size

    1600x1000mm

    Laser type

    Sealed CO2 laser tube,water-cooling

    Working table

    Auto feeding conveyor

    Cooling type

    Water cooling

    Data transfer interface

    USB or Wifi

    Cutting speed

    0-40000mm/min

    Smallest character

    Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm

    Locating precision

    ≤±0.01mm

    Supported graphic format

    PLT,AI,BMP.DST,DXF

    Power supply

    220V/50HZ , 110V/60HZ

    Control configuration

    DSP

    Operating temperature

    0-45°C

    Compatible software

    Coreldraw,Photoshop,autoCAD,

    Operation system

    Windows98/ME/2000/XP/VISTA/Windows7/8/10

    Machine weight

    630KGS


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.
