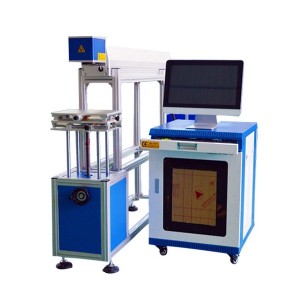

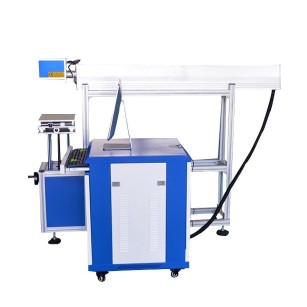

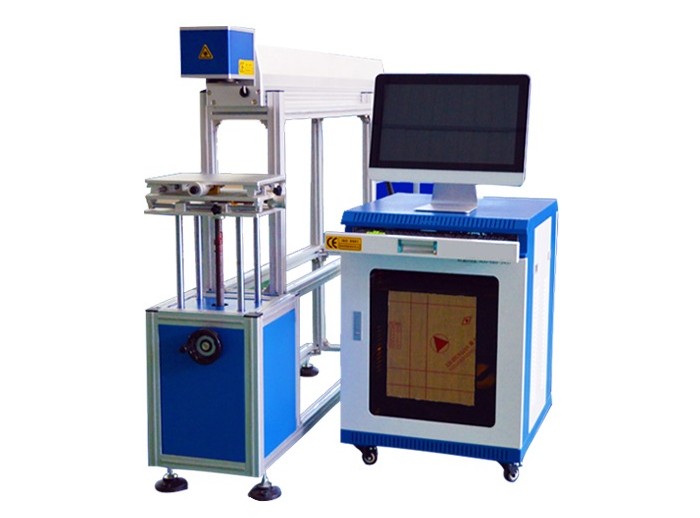

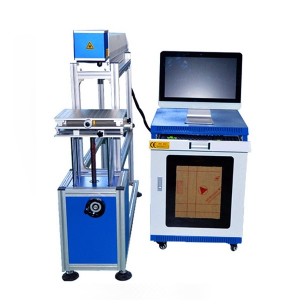

Desktop CO2 Glass Laser Tube Marking Machine
  • Desktop CO2 Glass Laser Tube Marking Machine
  • Desktop CO2 Glass Laser Tube Marking Machine
  • Desktop CO2 Glass Laser Tube Marking Machine
Desktop CO2 Glass Laser Tube Marking Machine Desktop CO2 Glass Laser Tube Marking Machine Desktop CO2 Glass Laser Tube Marking Machine

Desktop CO2 Glass Laser Tube Marking Machine

Download Brochure

1) standard marking area: 110mm*110mm/200mm*200mm/300mm*300mm optional
2) laser power: CO2 glass laser tube
3) cooling system: water cooling


    1.CO2 Laser marking machine features high precision, fast speed,and controllable marking depth as well as long continuous working hour with maintenance-free.
    2.Using Co2 laser device,which is economical,by the way of rear focusing.
    3.The optical system can be up-and-down back-and-forth freely.
    4.Dedicated industrial-control computer,is adaptable and has high capacity of antijamming,working stably to enable continuous and stable operation all day long .
    5.Adopting red dot positioning system to make an accurate position to avoiding Wasting material.
    6.Compatible with regular image format(bmp,jpg,gif,tga,png,tif,etc) ,vector image format(ai,dxf,dst,plt,etc )and image processing fuction(grey conversion,black and white image conversion,and net point processing
    7.With multiple control tools,users can freelly interact the control system with the external equipments
    8.Support multi-language.

    Applied industry:

    art craft,funiture,leather,sign board,food package,electronic components,medicine package,printing,brand plate.

    Applicable material:

    non-metal such as leather,rubber,wood,bamboo,acrylic,ceremic tile,plastic,marble,jade,crystal,cloth etc.

    Model

    ES-C80W

    Laser source

    CO2 glass laser tube

    Laser power

    80W/100W/130W

    Laser wavelength

    10640nm

    Laser repeat frequency

    ≤25kHz

    Speed

    7000mm/s

    Precision

    0.01mm

    Marking depth≤3mm(different according material)

    Minimum line width

    0.01mm

    Minimum height of characters

    0.1mm

    Cooling way

    Air cooling

    Marking range

    110x110mm/200x200mm/300x300mm optional

    Laser power supply

    1.2KW,220V/50Hz,110V/60HZ

    Software compatible

    Auto-cad, Coreldraw, Photoshop software

    Machine weight

    150KGS

    Optional deviceOnline flying marking, rotary device


    Package and shipping:

    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.

    Guarantee and after sale service:

    2 year guarantee for whole machine
    24 hours technical calling or e-mail service for any technical questions of our machine
    We offer detailed User Manual and videos for machine installation, operation, and also for Software
