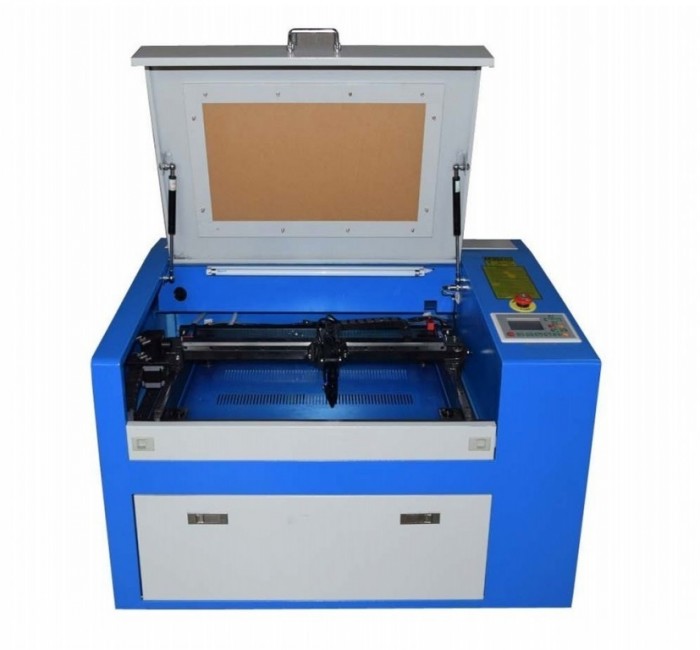

ES5030 Desktop Laser Engraving And Cutting Machine
  • ES5030 Desktop Laser Engraving And Cutting Machine
  • ES5030 Desktop Laser Engraving And Cutting Machine
  • ES5030 Desktop Laser Engraving And Cutting Machine
ES5030 Desktop Laser Engraving And Cutting Machine ES5030 Desktop Laser Engraving And Cutting Machine ES5030 Desktop Laser Engraving And Cutting Machine

ES5030 Desktop Laser Engraving And Cutting Machine

Download Brochure

1.Front and rear door to pass long materials.

2.Up and down motorized table, can engrave and cut different thickness material,

3.Adopt DSP control system, and USB offline operation 128 M memory space, LCD screen.

4.High compatibility, can support AutoCAD,CorelDRAW,PHOTOSHOP etc and meet the industry need.


    1.High speed.The maximum speed can be 1000mm/s which greatly improves working efficiency.

    2.Precise engraving.Professional engraving optical lens with more stable light beam and accurate red light position are adopted.

    3.Convenient putting in and putting away of materials.Working space can be opened totally and platform can be adjusted by up-and-down device.

    4.Engraving speed and precision can be up to leading level in China.

    5.Design software of AutoCAD,CorelDRAW,PHOTOSHOP are all supported for friendly human-computer interface and demand of the industries on-the -spot.

    6. It is mainly used for processing crafts and gifts such as engraving on wooden boards, acrylic and double -color boards.

    Applicable materials:


    Non-metal materials such as acrylic, double color board, Plexiglass, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.


    Applicable industries:


    Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.


    Factory workshop:


    NameES-5030 laser engraving machine
    Processing area500mmx300mm
    Laser power40W,50W,60W,80W
    Laser typeSealed Co2 glass laser tube
    Cooling modeWater cooling and protection system
    Resetting positioning accuracy±0.01mm
    Compatible softwareCorelDraw  AutoCAD  Photoshop
    Operation systemWindows 98/ME/2000/XP/VISTA/Windows7/8/10
    Engraving speed1-800mm/s
    Cutting speed1-600mm/s
    Cutting thickness0-15mm acrylic (others determined by materials)
    Resolution ratio≤0.02mm
    Position systemRed dot
    InterfaceUSB
    Minimum shaping characterletter 0.5mm, Chinese 0.5mm
    Support graphic formatDST, PLT, BMP, DXF, AI etc.
    Driving modeDC0.8A 24V stepper motor
    Working voltageAC 110 - 220V±10%, 50 - 60Hz or depend on customer
    Operating temperature0-45°C
    Operating humidity5-95%
    Machine size1050x650x600 mm
    Machine weight78KGS
    Package size1140x770x670 mm
    Package  weight105KGS
    Optional deviceRotary device, honeycomb table


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.





    Application materials:


    Material

    Engraving

    Cutting

    Wood

    Acrylic

    Cloth

    Leather

    Rubber

    MDF

    PVC

    paper

    Double color

    Plywood

    Balsa

    Cork

    Twill

    Plastic

    Wood veneer

    Delrin

    Die board

    Mat board

    Mylar

    Glass


    Tile


    Jade


    Stone


    Coated metal


    Stainless steel



    Carbon steel



    Copper



    Gold



    Silver
