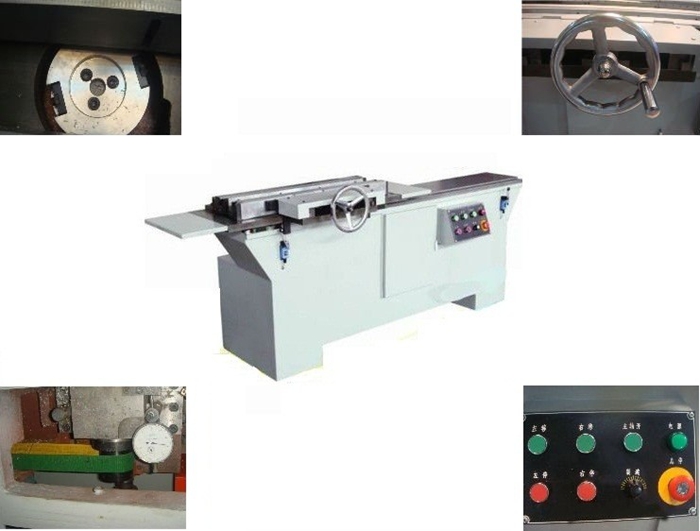

800mm Acrylic Diamond Edge Polishing Machine
  • 800mm Acrylic Diamond Edge Polishing Machine
  • 800mm Acrylic Diamond Edge Polishing Machine
  • 800mm Acrylic Diamond Edge Polishing Machine
800mm Acrylic Diamond Edge Polishing Machine 800mm Acrylic Diamond Edge Polishing Machine 800mm Acrylic Diamond Edge Polishing Machine

800mm Acrylic Diamond Edge Polishing Machine

Download Brochure

1. Max polishing length: 800mm.

2. One machine can save 10-20 person' work.

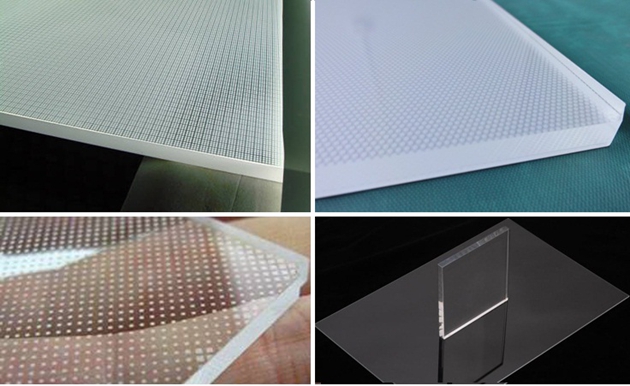

3. Application: Acrylic, crystal, organic glass etc.

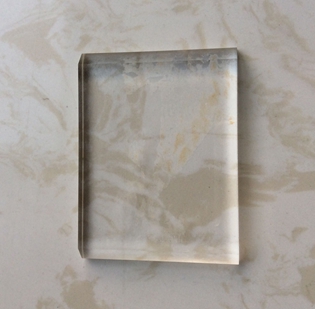

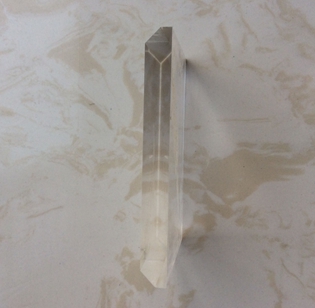

4. Polishing surface is smooth as mirror after processing.


    Feature:


    1. After polished by the machine, the acrylic surface is smooth like mirror, no bubble or other deficiency which are caused by traditional polishing mode.


    2. High work efficiency and high polishing quality, save labor cost and producing procedure.


    3. High polishing precision. The cutting depth can be adjustable and controlled by dial indicator, easy operation.


    4. Equipped with strong power dust collector, no dust or splash during working so to avoid abrasive powder created by traditional cloth wheel polishing machine.

    Item

    Parameter

    Model

    ES-800

    Max.polishing length

    800mm(31.5inch)

    Max.polishing width

    85mm(3.35inch)

    Polishing depth

    0-1mm(adjustable)

    Polishing degree

    0-45°

    Spindle power

    1.1KW

    Spindle speed

    4600rpm

    Feeding motor

    0.2KW

    Dust extractor

    2.2KW

    Dust extractor opening

    60mm

    Voltage

    3Phase,380V/50-60Hz OR Single phase220V/50-60Hz

    Machine dimension

    1840x700x900mm

    Package dimension

    1930x880x1200mm

    G.weight

    970kgs


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine;

    24 hours technical calling or e-mail service for any technical questions of our machine.

    We offer detailed User Manual and videos for machine installation, operation, and also for Software.
