Mini Non Metal CNC Engraving Cutting Machine CNC Router
  • Mini Non Metal CNC Engraving Cutting Machine CNC Router
  • Mini Non Metal CNC Engraving Cutting Machine CNC Router
  • Mini Non Metal CNC Engraving Cutting Machine CNC Router
Mini Non Metal CNC Engraving Cutting Machine CNC Router Mini Non Metal CNC Engraving Cutting Machine CNC Router Mini Non Metal CNC Engraving Cutting Machine CNC Router

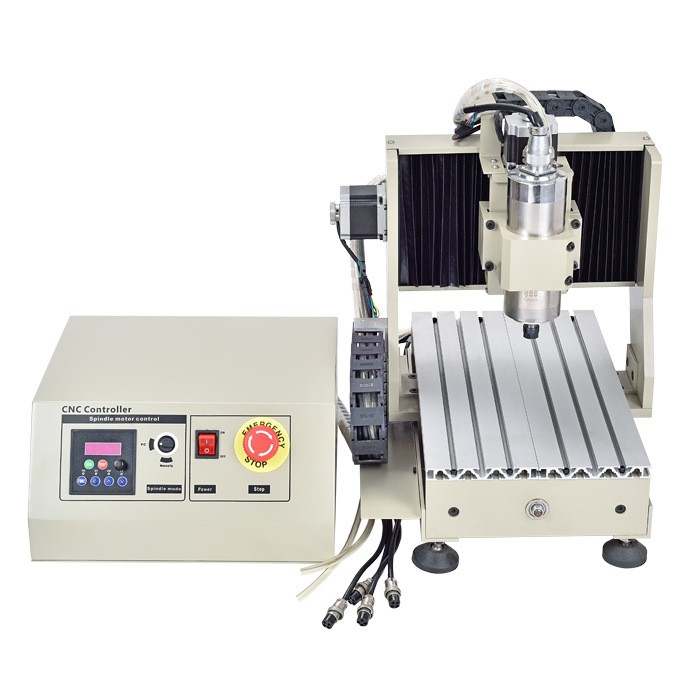

Mini Non Metal CNC Engraving Cutting Machine CNC Router

Download Brochure

1. Parallel port and USB port optional.
2. New and beautiful machine design.
3. 3 axis and 4 axis optional, Z axis reach up to 45mm.
4. Mainly used for PVC, acrylic, color board,metal.




    CNC cutting and engraving machine is mainly used for PVC, acrylic, color board, EVA foam, engineering plastics, wood carving, stainless steel engraving, aluminum cutting,copper cutting etc.,
    It also can be applied to engrave the PCB, IC polished wood model mold.
    The main application areas: industrial production, technology development, advertising design, art, school teaching and DIY design.

    Feature:

    1. New and beautiful machine design.
    2. Z axis can reach up to 45mm, which can meet the large objects carving and adding the fourth axis requirements.
    3. All the XYZ axis travel is equipped with limit switch, avoiding the trouble of operation process.

    The Range of Processing Material:

    300W is for PVC, acrylic, plastic, wood model, ordinary wood and other soft materials;
    600W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, bakelite, wood model, wood, hardwood, etc;
    800W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, EVA foam, carbon fiber, glass fiber board,wood model, wood, hardwood and soft metal and other materials.long time working.
    1500W and 2200W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, EVA foam, carbon fiber, glass fiber board, graphite,wood model, wood,
    hardwood, copper, steel, iron, aluminum alloy, jade and jadeite, etc. long time working.

    Model:

    ES-2030Z

    Machine dimension:

    505x390x350mm

    Bed dimension:

    430x240x100mm

    Frame material:

    6061 Hard aluminum alloy

    Effective travel area:

    X axis: 165mm, Y axis: 275mm, Z axis: 45mm

    Acceptable material thickness:

    ≤60mm

    Transmission unit:

    T1204 double-head T lead screw

    Spindle motor:

    300W brush DC high-speed spindle motor, ER11 collet, 3.175mm core

    Cooling mode:

    Air cooling

    Cutting speed:

    50-1500mm per min(set corresponding speed according different materials)

    Power supply:

    AC220V(Custom-made AC110V)

    Repeat positioning accuracy:

    ≤0.05mm

    Software:

    Mach3, EMC2

    Compatible software:

    TYPE3/MasterCAM/ Wentai and other CAM design software

    Command code:

    G code/TAB file/nc file/NCC file

    Software environment

    Windows XP 32 bite, Windows 7 32 bite

    Machine weight:

    27kg

    Package weight:

    31KGS

    Package size:

    55x44x40cm


    Packing list:


    Machine

    1pc

    Auxiliary electric control box

    1pc

    Manual

    1pc

    Training CD

    1pc

    Engraving tool

    5pc

    Spanners

    2pc

    T type screw nut

    4set

    Six angle wrench

    1set

    Parallel data lines

    1pc

    Power line

    1pc


    Package and Shipping:

    Every machine is packed with great care and tough material. all our machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:

    2 year guarantee for whole machine;
    24 hours technical calling or e-mail service for any technical questions of our machine
    We offer detailed User Manual and videos for machine installation, operation, and also for Software.
