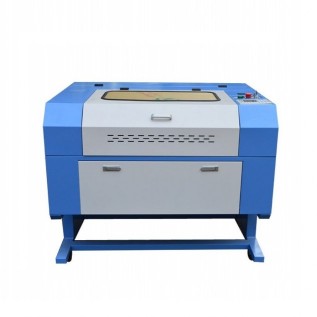

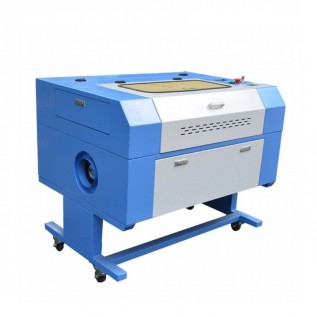

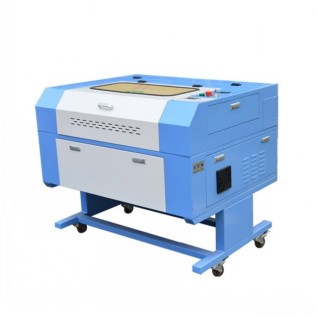

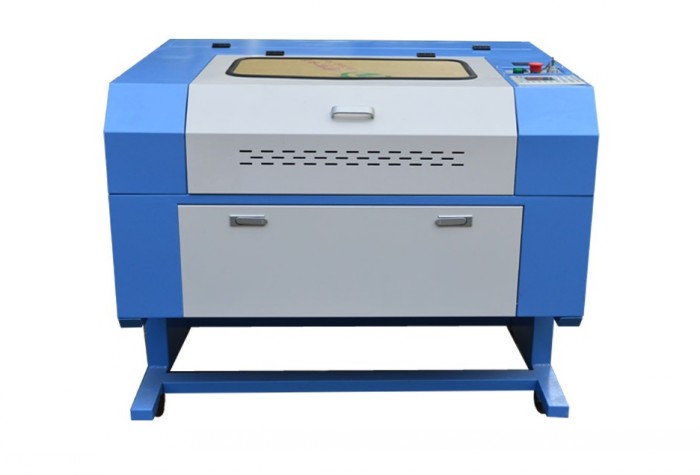

ES7050 CO2 Laser Cutting Engraving Machine
  • ES7050 CO2 Laser Cutting Engraving Machine
  • ES7050 CO2 Laser Cutting Engraving Machine
  • ES7050 CO2 Laser Cutting Engraving Machine
ES7050 CO2 Laser Cutting Engraving Machine ES7050 CO2 Laser Cutting Engraving Machine ES7050 CO2 Laser Cutting Engraving Machine

ES7050 CO2 Laser Cutting Engraving Machine

Download Brochure

Special working table design ,moving up-down worktable,can well process thick materials

Enough space for the material, can process long materials

Special design of the front door,machine looks beautiful.



    There is big improvement on this model machine,including moving system and machines features. The outlook is more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.

    1. Isolate between Laser tube and working area, guarantee the laser tube safety and make the light path clean.

    2. All switches, sockets and fast connection are not jut out of surface of the machine, adopt fireproof glass for safely operation.

    3. With the drawer and the funnel design for remnant, convenient to use.

    4. Automatic lift table, rotary device are optional to process circular object.

    5. Optional double laser heads cutting machine so that the exponential growth efficiency.

    6. Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.


    Applicable materials:


    Non-metal materials such as acrylic, double color board, Plexiglas, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.


    Applicable industries:


    Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.

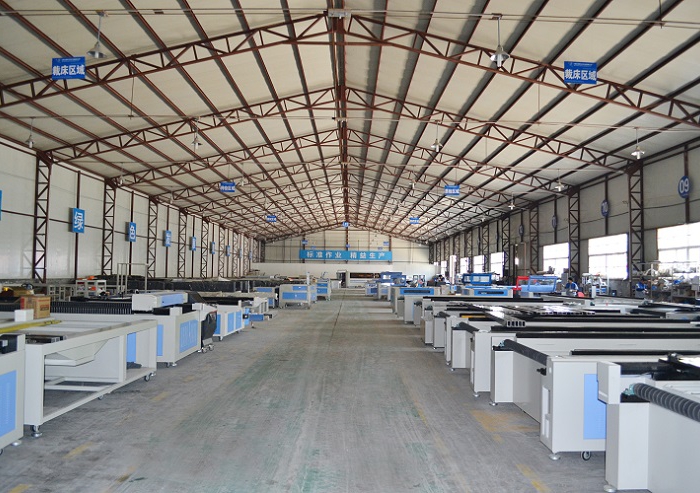

    Factory workshop:


    Type

    ES-7050

    Laser power

    60w/80w/100W

    Working size

    700x500mm

    Laser type

    Sealed CO2 laser tube,water-cooling

    Working table

    Blade or honeycomb worktable

    Cooling type

    Water cooling

    Engraving speed

    0-60000mm/min

    Cutting speed

    0-10000mm/min

    Cutting thickness

    0-20mm acrylic (others determined by materials)

    Smallest character

    Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm

    Locating precision

    ≤±0.01mm

    Supported graphic format

    PLT,AI,BMP.DST,DXF etc.

    Power supply

    AC 110 - 220V±10%, 50 - 60Hz

    Operating temperature

    0-45°C

    Compatible software

    CorelDRAW,photoshop,autoCAD,

    Color separation

    yes

    Operation system

    Windows 98/ME/2000/XP/VISTA/Windows7/8/10

    Machine size

    1.16x0.87x0.95m

    Machine weight

    120KGS

    Package size

    1.55x1x1.16m

    Package weight

    200KGS

    Optinal DeviceRotary device,Honeycomb table


    Package and Shipping:


    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.


    Guarantee and after sale service:


    2 year guarantee for whole machine; 5 months for laser tube and mirrors

    24 hours technical calling or e-mail service for any technical questions of our machine

    We offer detailed User Manual and videos for machine installation, operation, and also for Software





    Application material:


    Material

    Engraving

    Cutting

    Wood

    Acrylic

    Cloth

    Leather

    Rubber

    MDF

    PVC

    paper

    Double color

    Plywood

    Balsa

    Cork

    Twill

    Plastic

    Wood veneer

    Delrin

    Die board

    Mat board

    Mylar

    Glass


    Tile


    Jade


    Stone


    Coated metal


    Stainless steel



    Carbon steel



    Copper



    Gold



    Silver
